High-end Coasts Steam Generator for Steam Sauna Room,hammam bath steam generator
High-end Coasts Steam GeneratorItem specifics
- Type: Sauna Rooms
- Function: Wet Steam
- Feature: Computer Control Panel
- Model Number: CTG03
- Capacity: 4 People
- Main Material: Stainless steel
- Voltage: 380-416v
- Power: 5kw
- Herze: 50hz
- Material: Stainless steel
- Brand: Coasts

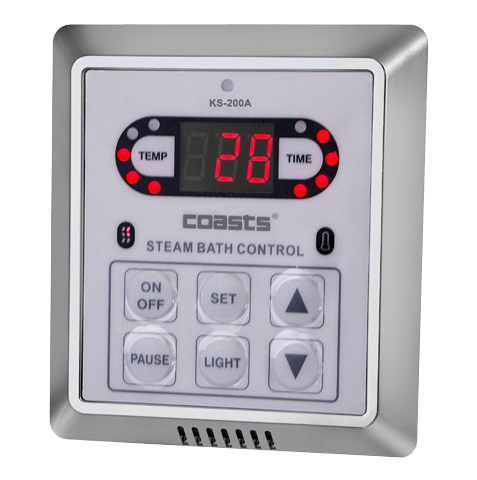

KS200A Controller Function:
- Touch buttons, water-proof and steam-proof.
- Digital display for both temperature and time.
- Heating status LED indicating.
- Self-diagnostic function and error message display.
- Lack-water and over-heat protection
- Steam room light control button.
- Automatic water feed-in and drain control
- Time range: 1-60minutes or non-stop
- Temperature display range:6-60C(43-10F)
- Temperature adjustment range:35-55C(95-131F)
|
The KSA steam generator is huge power, auto drain ,very suitable for commercial use.We use UL certificated heating element to prolong life time of generator.We are only factory which has UL certificated heating element.
Besides, we created speical segment-Heating function to prolong life of heating elements and save energy, it will automatic exchange heating element when it work.For commercial use, it is a great help. And we also design dual steam outlets for large power units 12kw and above,to make it steam more fast and more stable! After steam generator heating 5-6 minutes,it will product steam. CE approval product.
|
Model
|
Power
|
Voltage
|
Dimension(MM)
|
|
KSA30
|
3KW
|
220V
|
405*150*280
|
|
KSA40
|
4KW
|
220V
|
|
KSA50
|
5KW
|
220V
|
405*155*280
|
|
KSA60
|
6KW
|
220V/380V
|
|
KSA70
|
7KW
|
220V
|
405*180*330
|
|
KSA225
|
22.5KW
|
220V
|
|
KSA80
|
8KW
|
220V
|
|
KSA90
|
9KW
|
220V/380V
|
|
KSA105
|
10.5KW
|
380V
|
|
KSA120
|
12KW
|
380V
|
|
KSA150
|
15KW
|
380V
|
510*180*460
|
|
KSA180
|
18KW
|
380V
|
|
KSA240
|
24KW
|
380V
|
