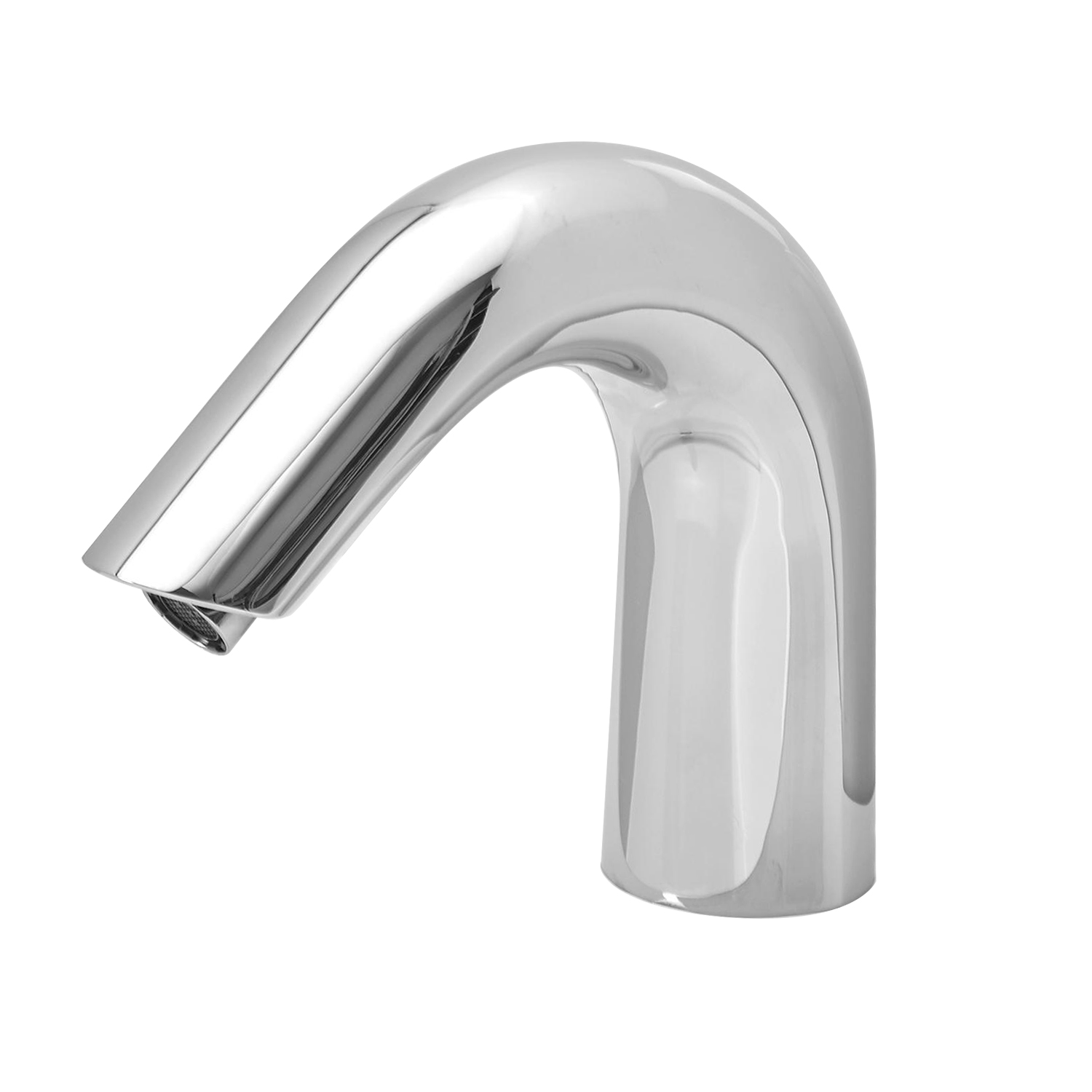

Atlanta Goose Neck Hands Free Commercial Automatic Sensor Faucet
Atlanta Goose Neck Hands Free Commercial Automatic Sensor Faucet Product Description
- Durable solid-brass construction; expertly crafted
- Motion detection touchless sensor faucet operation
- Drip Free Ceramic Disc Cartridge for Smooth and Long Lasting Operation
- Commercial and residential use
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Chrome Finish
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant
- Stainless Steel Hoses Included
- Can be installed in new or retrofit applications.
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.
|
ADA Compliant. Heavy Duty Automatic Sensor Faucet, Solid Brass, 360 degree rotating neck. Generally Suitable for Heavy Traffic Environments such as Food Handling Facilities, Laboratories, Clinics as well as Residential Applications. Perfect for Bathroom or Kitchen.
|
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power: DC.6V
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113 �F
- Degree of protection by enclosure: 1P56
- Mounting Type: Single hole
- Number of Hole Required for Installation: 1
- Faucet Centers (Distance Between Handle Installation Holes): Single Hole
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Infrared sensor operation
- Faucet Body Material: Brass
- Faucet Spout Material: Brass
- Maximum Deck Thickness: 1-5/8"
- Infrared sensor operation
BathSelect� Manufacture Warranty Information
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2� NPT Male
- Water Temperature Control;
check
Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2� to 6�
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Rio Infrared sensor operated, touch-free operation
- Advanced energy saving design for long lasting battery life
- Waterproof sensor
- Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
- Battery: 4*'AAA' size cells
- Operational water pressure range: 0.05 - 0.6MPa
- Water supply pipe size: DN15
- Ambient temperature range: 0.1 - 45 degrees
- Sensing distance: factory set 20cm
- Time delay: 0.5 seconds
- Operation duration: power will automatically cut off after continuous use for 60 seconds
- Pop-up drain: yes
- Color: chrome
- Usage: Commercial / Residential
Installation Manual For Rio Goose Neck Hands Free Faucets D511 Faucet Installation Instructions
|
|
|
|
|
|
|
